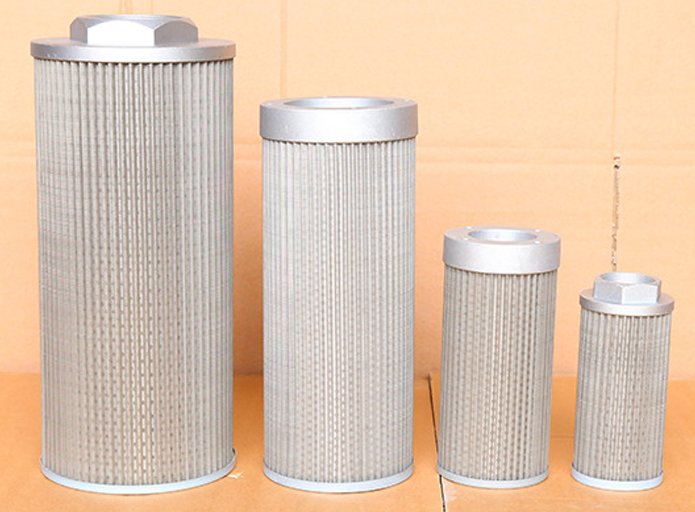

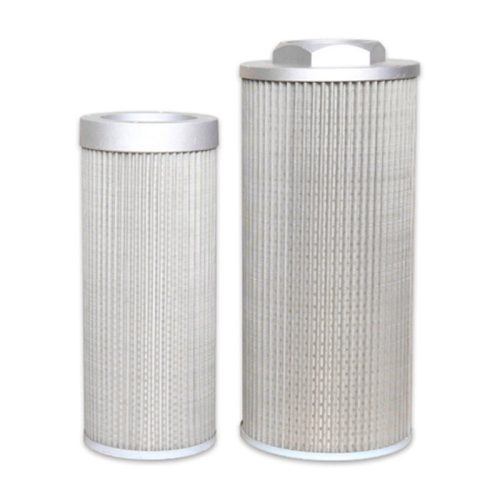

WU, XU Suntion Filter Series

The Filter provides reliable filtration for fluids in industrial applications. The tank mounted filter housings contain high-efficiency filter cartridges that trap and remove particles as fluid is drawn from the tank. Simple plumbing and space-saving design for suction-side filtration. Extend the lifespan of downstream equipment by removing particles and debris.

Introduction

This kind of filter is rough filter and can be installed at the inlet of the pump and can protect the pump not to in breathe the bigger impurity. The filter is simple designed. It’s easy to let oil go through and it has small resistance. It also has threaded connection and flanged connection. This kind of filter can be divided into wire mesh filter and notched wire filter.

Technical Parameters

modeldrift diameter
(mm)
Flow rate
(L/min)
original pressure loss
(MPa)
filtration accuracy
(μm)
by-pass valve opening pressure
(MPa)
Connecting
X/WU - 16 x * - J1216<=0.0180
100
180
0.02pipe
X/WU - 25 x * - J1525
X/WU - 40 x * - J2040
X/WU - 63 x * - J2563
X/WU - 100 x * - J32100
X/WU - 160 x * - J40160
X/WU - 225 x * G - J50225
X/WU - 250 x * F-J50250flange
X/WU - 400 x * F - J65400
X/WU - 630 x * F - J80630
WU - 800 x * G - J63800pipe
WU - 1000 x * G - J761000

Connection Size

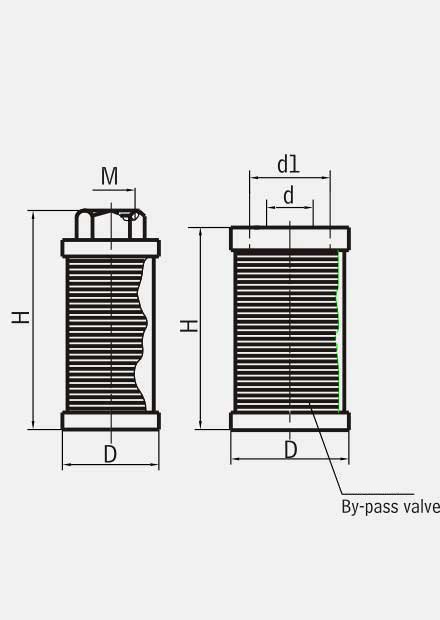

1、WU series (net type)

ModelSize (mm)
HDM(d)d1
WU-16 x * - J84Φ35M18 x 1.5
WU-25 x * - J104Φ43M22 x 1.5
WU-40 x * - J124M27x2
WU-63 x * - J103Φ70M33x2
WU-100 x * - J153M42x2
WU-160 x * - J200Φ82M48x2
WU-225 x * G - J165Φ150G2
WU-250 x * f - J182Φ88Φ50Φ74
WU-400 x * f - J229Φ105Φ65Φ93
WU-630 x * f - J281Φ118Φ80Φ104
WU-800 x * G - J340Φ150G2 1/2
WU-1000 x * G - J430Φ150G3

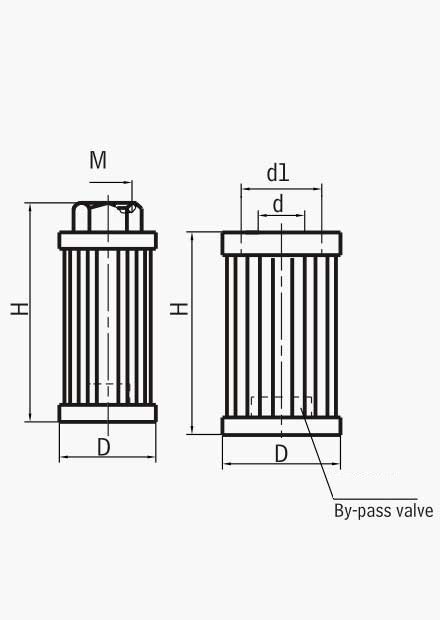

2、Xu series (wire gap type)

ModelSize (mm)
HDM(d)d1
XU-6 x * - J73Φ56M18X1.5
XU-10 x * - J104
XU-16 x * - J158
XU-25 x * - J125Φ75M22X1.5
XU-40 x * - J198M27X2
XU-63 x * - J186Φ99M33X2
XU-100 x * - J288M42X2
XU-160 x * - J368Φ118M48X2
XU-250 x * F - J422Φ162Φ50Φ74
XU-400 x * F - J491Φ222Φ65Φ93
XU-636 x * f - J659Φ252Φ80Φ104

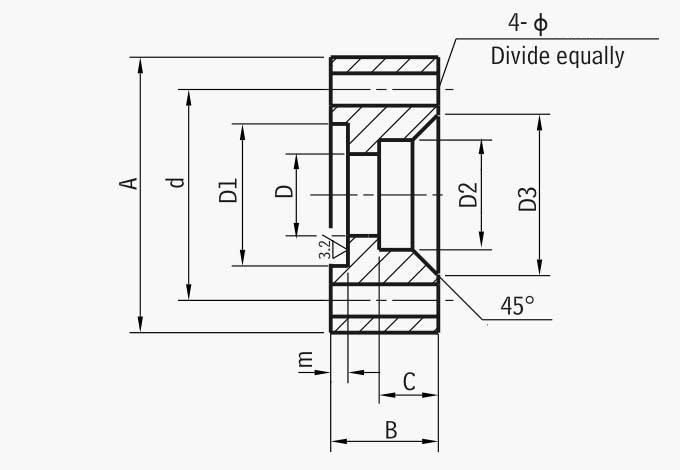

3、Connect flange,please refer to the following size processing

Modulesize(mm)flange with O ringflange screws
(4 PCS)
ABCDD1+0.06D2+0.2D3dE-0.14-Φ
WU - 250 x * F - JΦ86159Φ50Φ60Φ54Φ60Φ742.46.7Φ60x3.1M6x25
XU - 250 x * F - J
WU - 400 x * F - JΦ105Φ65Φ75Φ70Φ76Φ93Φ75x3.1
XU - 400 x * F - J
WU - 630 x * F - JΦ118Φ80Φ90Φ85Φ91Φ104Φ90x3.1
XU - 630 x * F - J

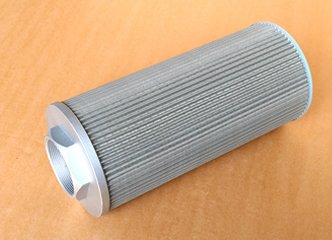

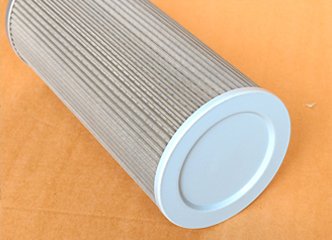

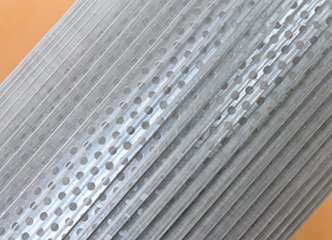

Filtration Effect

Package

Oil filters with plastic wrap, and packaed by wooden case.

12

After-Sales Service

1 year warranty (charge for human damaged parts)

Lifetime maintenance and spare parts supply

Customized products designed according to your needs

Free training for your staff on equipment installation and operating procedures
