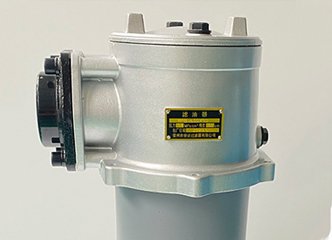

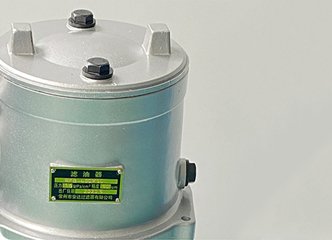

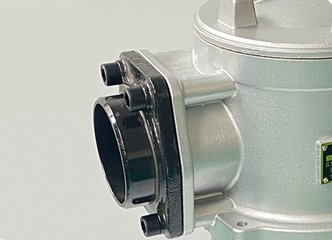

RFB With Check Valve Magnetic Return Filter Series

RFB With Check Valve Magnetic Return Filter Series

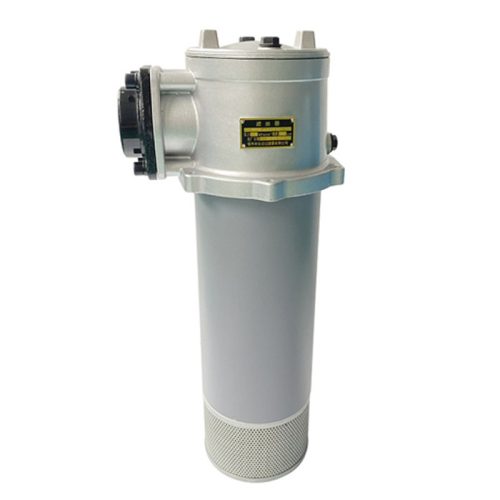

RFB With Check Valve Magnetic Return Filter Series is a high-performance oil filter, which uses high-efficiency magnetic return technology, which can effectively remove impurities in the liquid and improve the cleanliness and quality of the liquid. It is characterized by: excellent corrosion resistance, efficient filtrate flow, sophisticated filter element design, safe and reliable operation. It has a high-efficiency filtrate treatment capacity, which can effectively remove impurities in the liquid and improve the cleanliness and quality of the liquid. In addition, it also has good pressure resistance and wear resistance, which can meet the requirements of different occasions.

Introduction

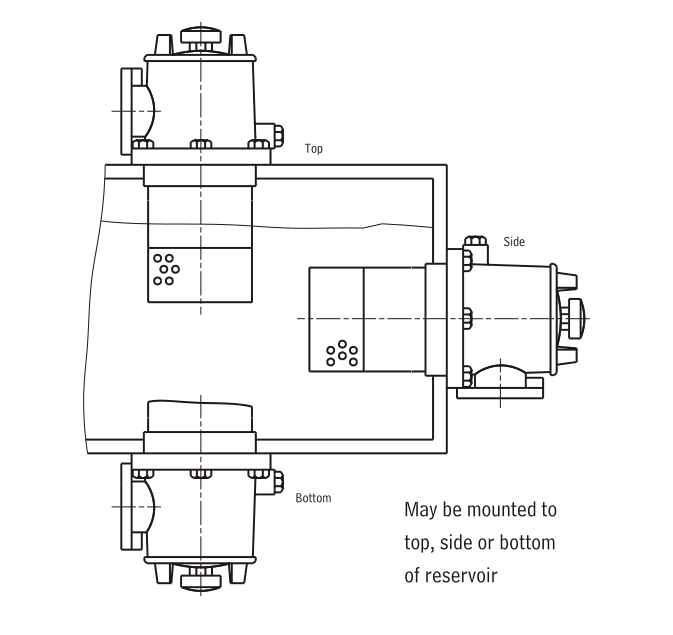

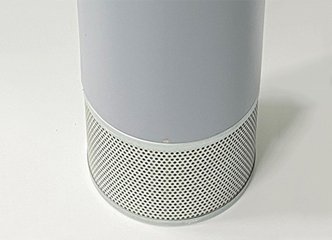

RFB-series filters are used in the return line of hydraulic systems. They can be installed on the top. at the side or in the bottom of tanks. Every filter is equipped with a permanent magnet to remove ferrous matter in the oil. The filter element is made of non-woven fiber with high efficiency and low restriction. A diffuser is fitted in the lower part of the filter, ensuring steady oil flow into the tank. There is a check valve in the filter to prevent oil from flowing out from the tank when the filter element is changed.

The differential pressure indicator will signal when the pressure drop across the filter element attains 0.35MPa and the by-pass valve opens at 0.4MPa.

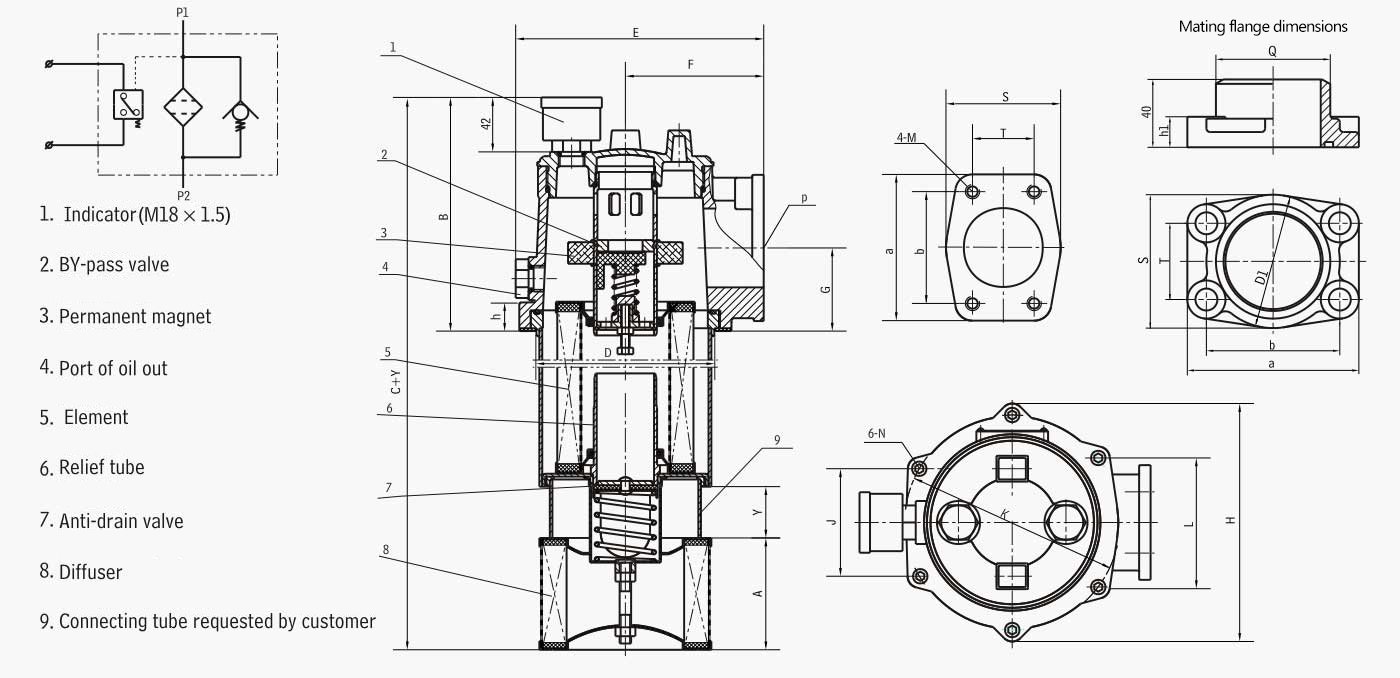

Installation diagram and model description

Technical Parameters

modelnominal flow rate
(L/min)
filtration accuracy
(μm)
nominal pressure
(MPa)
pressure loss
(MPa)
transmitting device
(V/W)
weight
(Kg)
filter element model
InitialMax.(V)(A)
RFB-25 x *C/Y251
3
5
10
20
30
1.6≤0.0750.3512
24
63
220
2.5
2
1.5
0.5
4.6FBX-25 x *
RFB-40 x *C/Y404.8FBX-40 x *
RFB-63 x *C/Y635.3FBX - 63 x *
RFB-100 x *C/Y1006FBX-100 x *
RFB-160 X *C/Y1606.7RFB-160 X *C
RFB-250 X *C/Y25012.3FBX-250 X *
RFB-400 x *C/Y40014.7FBX-400 x *
RFB-630 x *C/Y63017.3FBX-630 x *
RFB - 800 x *C/Y80018.6FBX-800 x *
RFB- 1000x*C/Y100021.3FBX-1000 X *
RFB- 1300x*C/Y1300RFB-1300x*C

Note:*refers to filtration accuracy.If the medium is water-glycol,nominal flow rate is 63L/min,filtration accuracy is 10μm,with CYB- I transmitter,the filter model is RFB.BH-160x 10Y,and the filter element model isFBX.BH-160X10.



Connection Size

ModelSize (mm)
ABCDEFGHJKLNPMabSTQh
RFB - 25 x *C/Y78167348Φ12417596.55816875Φ15090Φ7Φ55M101027880436020
RFB - 40 x *C/Y374
RFB - 63 x *C/Y411
RFB - 100 x *C/Y473
RFB - 160 x *C/Y548
RFB - 250 x *C/Y120210558Φ18625013274245112Φ225132Φ9Φ80M12140106110629022
RFB - 400 x *C/Y708
RFB - 630 x *C/Y877
RFB - 800 x *C/Y948
RFB- 1000 x*C/Y1114
RFB- 1300 x*C/Y1454

Filtration Effect

Package

Oil filters with plastic wrap, and packaed by wooden case.

12

After-Sales Service

1 year warranty (charge for human damaged parts)

Lifetime maintenance and spare parts supply

Customized products designed according to your needs

Free training for your staff on equipment installation and operating procedures
