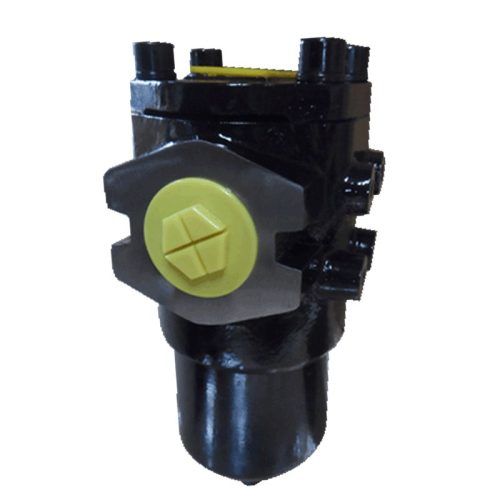

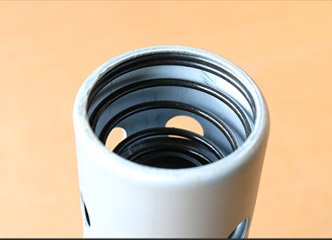

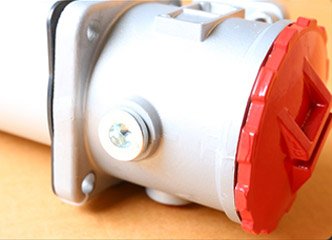

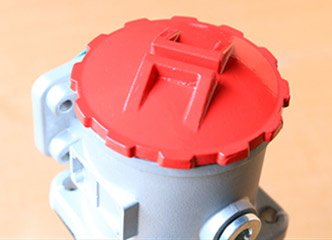

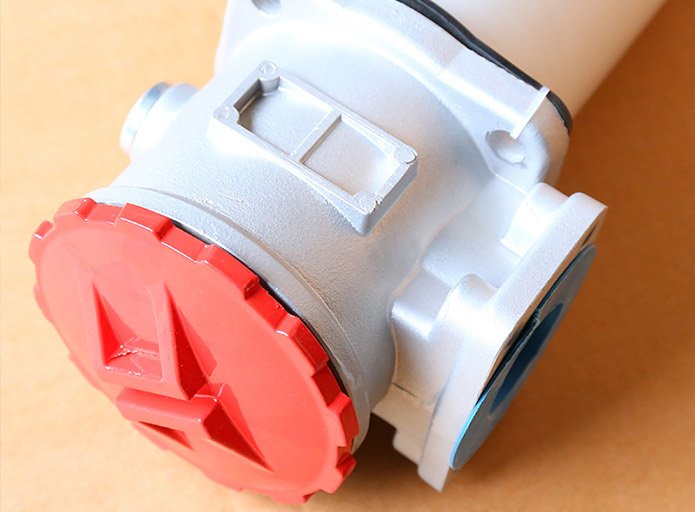

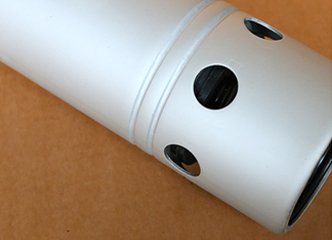

PLF Series Pressure Line Filter
Pressure line filters are an essential part of most hydraulic systems, located downstream from the system pump and designed to handle the system pressure and flow rate. They are available in a variety of sizes and types, including the PLF series. Pressure line filters are used to protect hydraulic systems from wear and tear, as well as to reduce the risk of hydraulic system failure.
Introduction
PLF series filter is of high-pressure type and used in the pressure line of the hydraulic system. It can remove all the contaminants from the hydraulic system. The element of this series is made of glass fiber. it has high efficiency and filtration, large dirt capacity, and low initial pressure drop. The beta ratio is over 200.
It has two pieces of protection equipment which are by-pass valve and contamination indicator. The indicator will act when the pressure drop across the element attains adjustable pressure. The element should be cleaned or changed in time. Compare to other filters, this kind of filter is designed in small size. It can be used in different pressure levels and can be easily installed and the filter element also can be easily changed.
Technical Parameters
| model | Flow rate (L/min) | filtration accuracy (μm) | nominal pressure （MPa） | pressure loss (MPa) | transmitter power （V/W） | filter element model | connection Type | |
| Initial | Max | |||||||
| PLF - 30 x *P | 30 | 3 5 10 20 | H=32 E=16 C=6.3 | <=0.07 | 0.5 | 24V/48W 220V/50W | PLFX-30-X* | tubular |
| PLF - 60 X *P | 60 | LH0060D*BN3HC | ||||||
| PLF - 110x*P | 110 | LH0110D*BN3HC | ||||||
| PLF - 160x*P | 160 | LH0160D*BN3HC | ||||||
| PLF - 240x*FP | 240 | LH0240D*BN3HC | flange type | |||||
| PLF - 330 x*FP | 330 | LH0330D*BN3HC | ||||||
| PLF - 500 x*FP | 500 | LH0500D*BN3HC | ||||||
| PLF - 660x*FP | 660 | LH0660D*BN3HC | ||||||
Note:*refers to filtration accuracy.If the medium is water-glycol,service pressure is 32MPa,nominal flow rate is 60L/min,filtration accuracy is 10μm,with transmitter,the filter model is PLFOBH-H60x10P,and the filter element model is LH0060D010BN3HC.
Connection Size

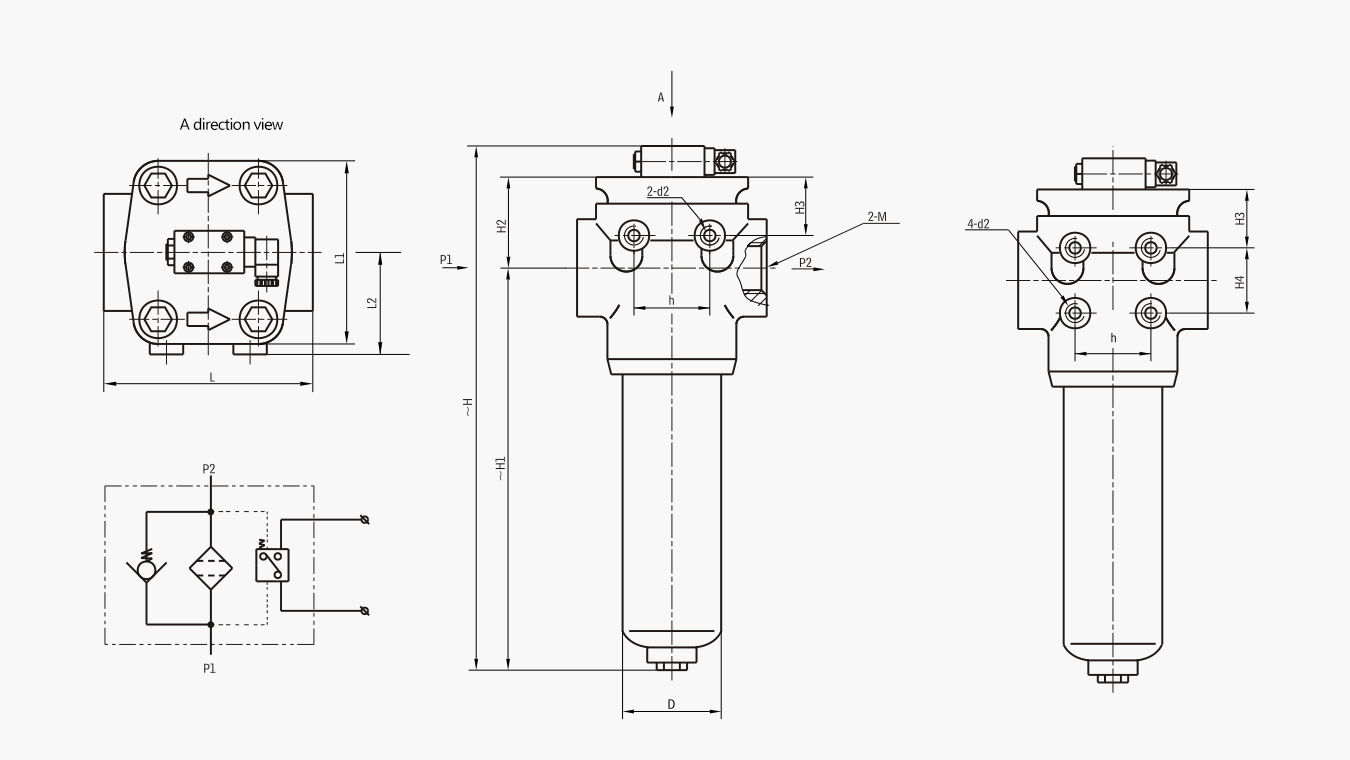

I、tubular
1、32MPa pressure pipeline filter
| Model | Size (mm) | |||||||||||
| ~H | ~H1 | H2 | H3 | H4 | h | L | L1 | L2 | D | M | d2 | |
| PLF-H30 x *P | 239 | 146 | 58 | 45 | 35 | 118 | 114 | 69 | 73 | 2 - M33 x 2 | 2-M10 | |
| PLF-H60 X *P | 255 | 162 | 58 | 45 | 35 | 118 | 114 | 69 | 73 | 2 - M33 x 2 | 2-M10 | |
| PLF-H110x*P | 329 | 236 | 58 | 45 | 35 | 118 | 114 | 69 | 73 | 2-M42x2 | 2-M10 | |
| PLF-H160x*P | 319 | 215 | 69 | 49 | 45 | 50 | 150 | 140 | 82 | 102 | 2-M48X2 | 4-M10 |
2、16MPa pressure pipeline filter
| Model | Size (mm) | |||||||||||
| ~H | ~H1 | H2 | H3 | H4 | h | L | L1 | L2 | D | M | d2 | |
| PLF-E30 x *P | 223 | 136 | 52 | 39 | 35 | 110 | 100 | 62 | 73 | 2 - M33 x 2 | 2-M10 | |
| PLF-E60 X *P | 239 | 152 | 52 | 39 | 35 | 110 | 100 | 62 | 73 | 2 - M33 x 2 | 2-M10 | |
| PLF-E110x*P | 308 | 221 | 52 | 39 | 35 | 110 | 100 | 62 | 73 | 2-M42x2 | 2-M10 | |
| PLF-E160x*P | 294 | 196 | 63 | 43 | 45 | 45 | 140 | 130 | 77 | 95 | 2-M48x2 | 4-M10 |
3、6.3MPa pressure pipeline filter
| Model | Size (mm) | |||||||||||
| ~H | ~H1 | H2 | H3 | H4 | h | L | L1 | L2 | D | M | d2 | |
| PLF - C30 X *P | 223 | 136 | 52 | 39 | 35 | 110 | 88 | 56 | 73 | 2 - M33 x 2 | 2-M10 | |
| PLF - C60 x *P | 239 | 152 | 52 | 39 | 35 | 110 | 88 | 56 | 73 | 2 - M33 x 2 | 2-M10 | |
| PLF - C110 x *P | 308 | 221 | 52 | 39 | 35 | 110 | 88 | 56 | 73 | 2-M42x2 | 2-M10 | |
| PLF - C160 X *P | 290 | 196 | 59 | 39 | 45 | 45 | 140 | 114 | 69 | 95 | 2-M48x2 | 2-M10 |

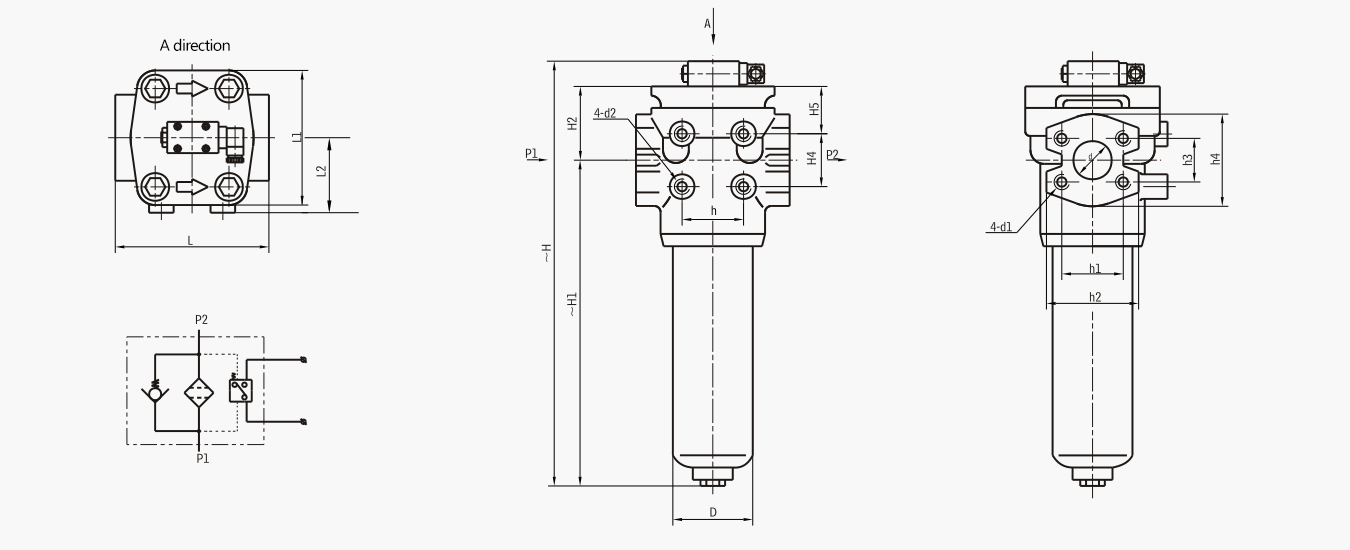

II、flange type
1、32MPa pressure pipeline filter
| Model | Size (mm) | ||||||||||||||||
| ~H | ~H1 | H2 | H4 | H5 | h | h1 | h2 | h3 | h4 | L | L1 | L2 | D | d | d1 | d2 | |
| PLF-H242 x *FP | 377 | 273 | 69 | 45 | 49 | 50 | 79.4 ±0.25 | 110 | 36.5 ±0.25 | 90 | 150 | 140 | 82 | 102 | 2-Φ38 | 4-M16 | 4-M10 |
| PLF-H333 x *FP | 400 | 277 | 88 | 60 | 63 | 80 | 96.8 ±0.25 | 130 | 44.5 ±0.25 | 110 | 190 | 180 | 108 | 146 | 2-Φ51 | 4-M20 | 4-M12 |
| PLF-H500 x *FP | 493 | 370 | 88 | 60 | 63 | 80 | 96.8 ±0.25 | 130 | 44.5 ±0.25 | 110 | 190 | 180 | 108 | 146 | 2-Φ51 | 4-M20 | 4-M12 |
| PLF-H666 x *FP | 567 | 444 | 88 | 60 | 63 | 80 | 96.8 ±0.25 | 130 | 44.5 ±0.25 | 110 | 190 | 180 | 108 | 146 | 2-Φ51 | 4-M20 | 4-M12 |
2、16MPa pressure pipeline filter
| Model | Size (mm) | ||||||||||||||||
| ~H | ~H1 | H2 | H4 | H5 | h | h1 | h2 | h3 | h4 | L | L1 | L2 | D | d | d1 | d2 | |
| PLF-E240 x *FP | 352 | 254 | 63 | 45 | 43 | 45 | 69.9 ±0.25 | 94 | 35.7 ±0.25 | 82 | 140 | 130 | 77 | 95 | 2-Φ38 | 4-M12 | 4-M10 |
| PLF-E330 x *FP | 368 | 257 | 76 | 55 | 56 | 75 | 77.8 ±0.25 | 102 | 42.9 ±0.25 | 96 | 180 | 164 | 100 | 140 | 2-Φ51 | 4-M12 | 4-M12 |
| PLF-E500 x *FP | 461 | 350 | 76 | 55 | 56 | 75 | 77.8 ±0.25 | 102 | 42.9 ±0.25 | 96 | 180 | 164 | 100 | 140 | 2-Φ51 | 4-M12 | 4-M12 |
| PLF-E660 x *FP | 535 | 424 | 76 | 55 | 56 | 75 | 77.8 ±0.25 | 102 | 42.9 ±0.25 | 96 | 180 | 164 | 100 | 140 | 2-Φ51 | 4-M12 | 4-M12 |
3、6.3MPa pressure pipeline filter
| Model | Size (mm) | ||||||||||||||||
| ~H | ~H1 | H2 | H4 | H5 | h | h1 | h2 | h3 | h4 | L | L1 | L2 | D | d | d1 | d2 | |
| PLF-C240x*FP | 348 | 254 | 59 | 45 | 39 | 45 | 69.9 ±0.25 | 94 | 35.7 ±0.25 | 82 | 140 | 114 | 69 | 95 | 2-Φ38 | 4-M12 | 4-M12 |
| PLF-C330x*FP | 350 | 249 | 66 | 55 | 46 | 65 | 77.8 ±0.25 | 102 | 42.9 ±0.25 | 96 | 180 | 144 | 90 | 133 | 2-Φ51 | 4-M12 | 4-M12 |
| PLF-C500x*FP | 443 | 342 | 66 | 55 | 46 | 65 | 77.8 ±0.25 | 102 | 42.9 ±0.25 | 96 | 180 | 144 | 90 | 133 | 2-Φ51 | 4-M12 | 4-M12 |
| PLF-C660x*FP | 517 | 416 | 66 | 55 | 46 | 65 | 77.8 ±0.25 | 102 | 42.9 ±0.25 | 96 | 180 | 144 | 90 | 133 | 2-Φ51 | 4-M12 | 4-M12 |
Filtration Effect
Package
Oil filters with plastic wrap, and packaed by wooden case.
