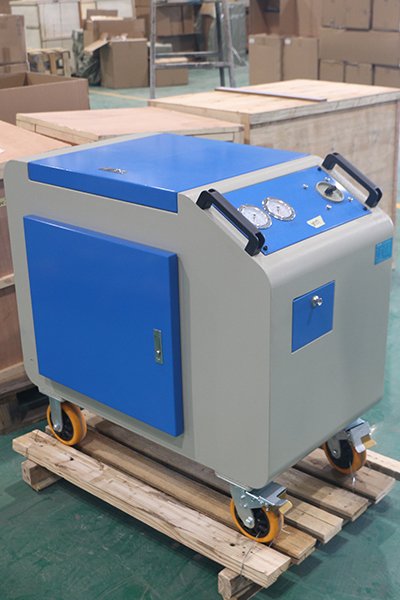

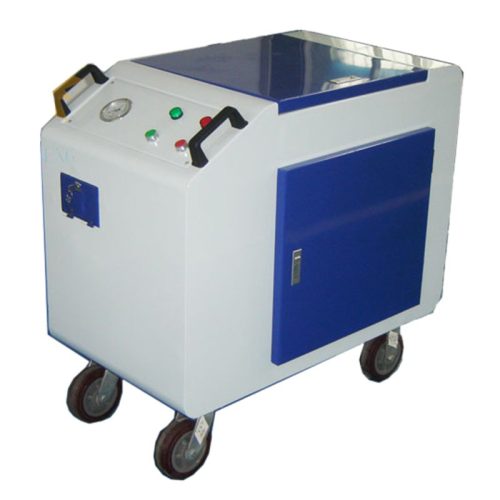

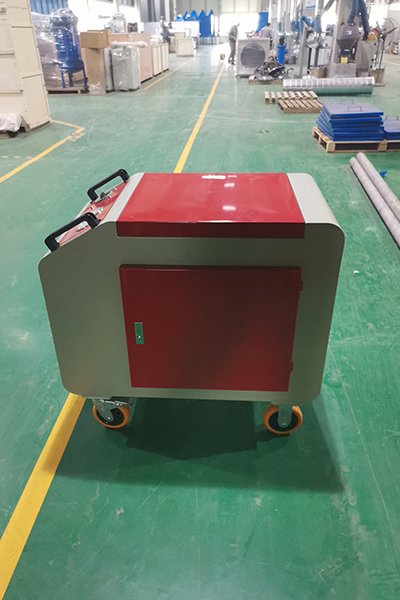

LYC-C Box-type Mobile Oil Purifier
It is a high-performance, easy-to-move oil filter equipment, which can be widely used in the purification treatment of various industrial oils, for filtering various impurities such as transformer oil, machine oil, gear oil, and transmission oil. It helps you achieve a more efficient, safe and reliable treatment.
Introduction
LYC-C box-type mobile oil purifier can choose to carry the oil tank type, with a mailbox. The oil in the self-provided mailbox can be directly injected into the system after the self-circulation filtration reaches the standard. It is especially suitable for hydraulic systems with precise components such as servo valves and proportional relief valves.

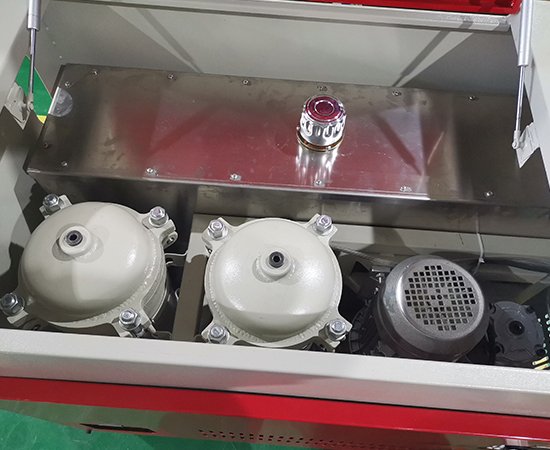

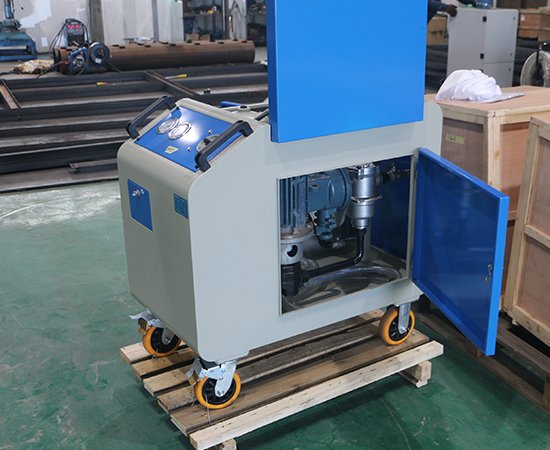

- The oil filter consists of a motor-driven gear pump, dedicating low noise, strong self-absorption capacity, smoothie running characteristics.
- The high-pressure pipe with overflow protection device, which can effectively protect the safety of hydraulic system.
- The use of thermal relay protection to prevent motor damage caused by motor overload.
- The coarse filtration of suction port can protect the pump and extend the life of the main filter.
- The precision filter chosen by different users for different precision, and can achieve the desired results.

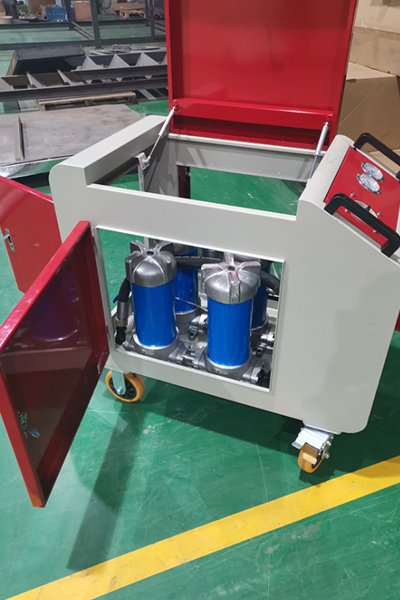

- Precision oil filtration housing with quick open structure, which can quickly open the cover and replace the filter without any tools.
- Pressure gauge equipped on the panel, can show the continuous indication of the degree of contamination of the system operating
conditions and filter.
Technical Parameters
| LYC-C Series High Precison Oil Purifier (Three Filtration&Purification Levels) | ||||||
|---|---|---|---|---|---|---|
| P/N. | LYC-25C | LYC-32C | LYC-50C | LYC-63C | LYC-100C | LYC-150C |
| Flow rate L/min | 25 | 32 | 50 | 63 | 100 | 150 |
| Pressure/MPa | 0.6 | |||||
| 1st filter/μm | 80-100 | |||||
| 2nd filter/μm | 10,20,50 | |||||
| 3rdfilter/μm | 3,5,10,20,40 | |||||
| Motor power/kw | 0.55 | 0.75 | 1.1 | 1.5 | 2.2 | 3 |
| Inlet/Outlet | G1 | G1 | G1 | G1 | G1 | G1 1/4 |
| Voltage/v | 220V2PH or 380V/50Hz 3PH | |||||
| Weight/KG | 80 | 80 | 110 | 120 | 130 | 180 |
| Sizes/mm | 520*350*950 | 720*680*1020 | 720*680*1020 | 720*680*1020 | 7200*750*1020 | 720*750*1220 |
Detailed
Application
- New oil filtration
- Filling the new oil and purifying
- Cleaning up the oil being used
- Bypass filtration when hydraulic lubrication system at work
- Removing the water from oil system
Filtration Effect
Package
Oil filters with plastic wrap, and packaed by wooden case.
