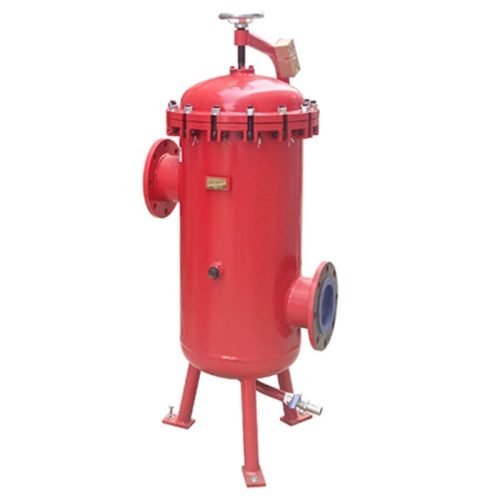

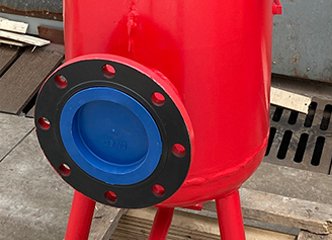

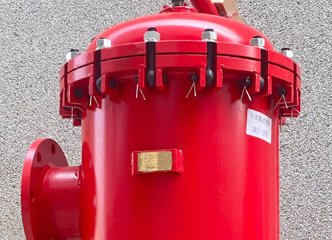

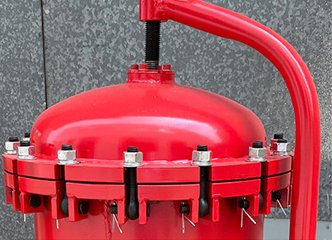

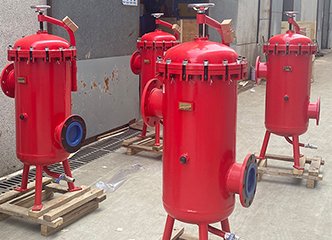

DRLF Large Flow Rate Return Line Filter Series
We offer the DRLF Large Flow Rate Return Line Filter Series with extremely high performance, which can meet your highest requirements. It features state-of-the-art technology, higher flow rates, faster cartridge changes, lower pressure loss, longer service life, less maintenance and lower costs. Our technical engineers can provide you with the most professional technical support to ensure that your product performs at its best.
Introduction
DRLF series filter is used in return line : it can remove all the contaminants from the hydraulic system , keeping the oil back to the tank clean . The element of this series is made of glass fibre ; it has high efficiency and filtration , large dirt capacity and lower initial pressure drop . There is a by-pass valve and a contamination indicator. The indicator will act when the pressure drop across filter element attains 0.35MPA .The element should be cleaned or changed in time , if the system cannot be stopped or nobody replaces element , the by-pass valve will open to protect the hydraulic system safety.
This series of filter is widely used in the hydraulic and lubrication system of heavy duty machine , mining machine , metallurgical machine and so on.
Technical Parameters
| model | drift diameter (mm) | nominal flow rate (L/min) | filtration accuracy (μm) | nominal pressure （MPa） | pressure loss (MPa) | by-pass valve opening pressure (MPa) | power of transmitting device （V/W） | weight (Kg) | filter element mode | Number of filter elements | |
| Initial | Max | ||||||||||
| DRLF-A1300x*P | 100 | 1300 | 1 3 5 10 20 30 | 1.6 | 0.1 | 35 | 0.4 | 24V/48W 220V/50W | 140 | SFX-1300x* | 1 |
| DRLF-A2600x*P | 150 | 2600 | 202 | 2 | |||||||
| DRLF-A3900x*P | 200 | 3900 | 225 | 3 | |||||||
| DRLF-A6500x*P | 250 | 6500 | 266 | 5 | |||||||
| DRLF-A7800x*P | 250 | 7800 | 287 | 6 | |||||||
| DRLF-A9100x*P | 250 | 9100 | 308 | 7 | |||||||
Note:*refers to filtration accuracy.If the medium is water-glycol,nominal flow rate is 63L/min,filtration accuracy is 10μm,and the transmitter is provided,the filter model is DRLF.BH-A2600x10P and the filter element model is SFX.BH-1300X10.

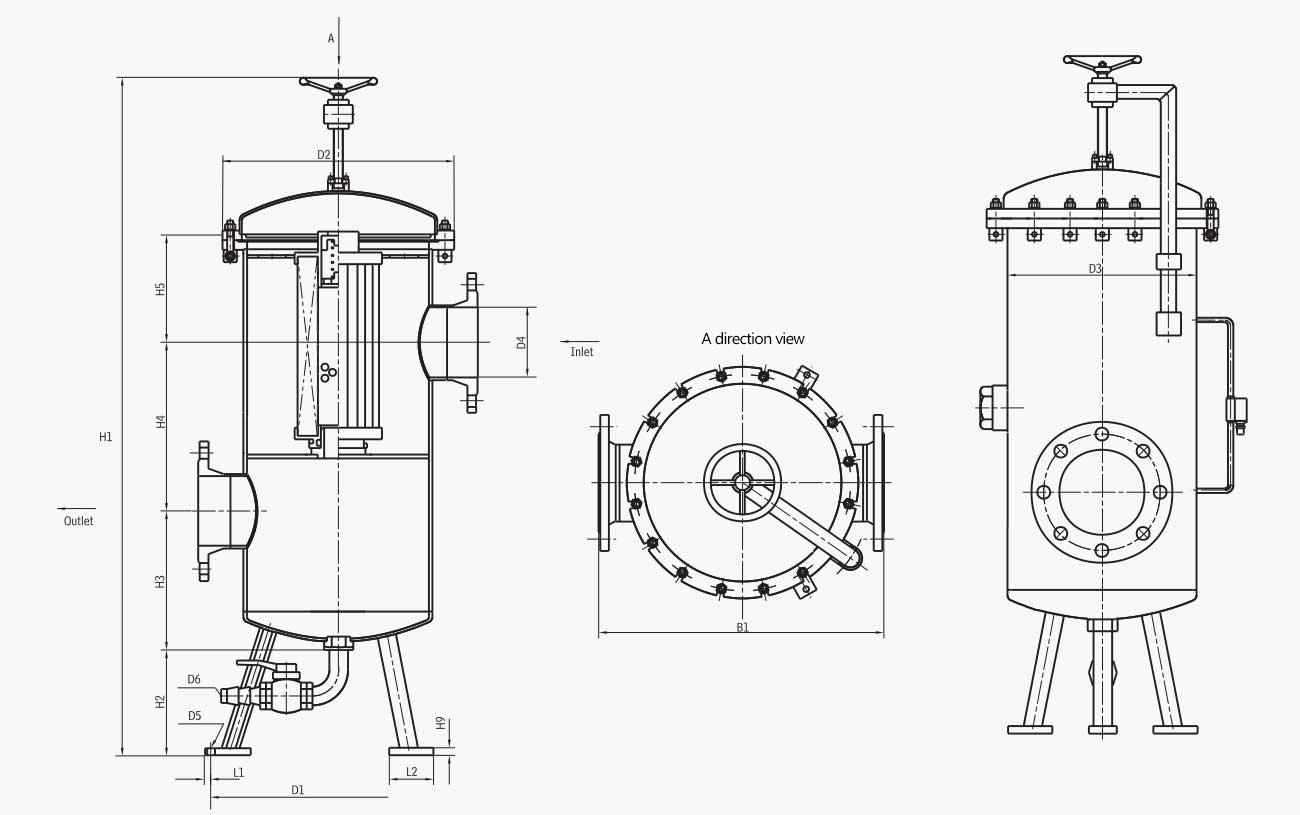

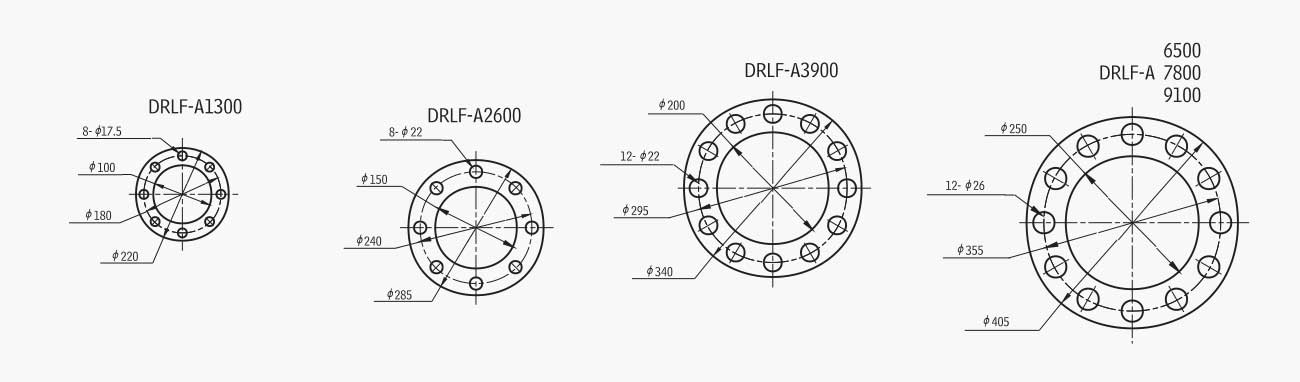

Connection Size
| Model | Size (mm) | Number of filter elements | ||||||||||||||||
| B1 | D1 | D2 | D3 | D4 | D5 | D6 | H1 | H2 | H3 | H4 | H5 | H6 | H8 | H9 | L1 | L2 | ||
| DRLF-A1300x*P | 502 | 450 | 340 | 264 | 100 | 14 | 21 | 1400 | 250 | 230 | 365 | 230 | 150 | 200 | 12 | 20 | 80 | 1 |
| DRLF-A2600x*P | 602 | 555 | 500 | 412 | 150 | 18 | 21 | 1480 | 250 | 275 | 225 | 260 | 29 | 100 | 2 | |||
| DRLF-A3900x*P | 200 | 3 | ||||||||||||||||
| DRLF-A6500x*P | 754 | 600 | 610 | 516 | 250 | 23 | 1700 | 350 | 450 | 250 | 270 | 325 | 18 | 31 | 10 | 5 | ||
| DRLF-A7800x*P | 6 | |||||||||||||||||
| DRLF-A9100x*P | 7 | |||||||||||||||||
Filtration Effect
Package
Oil filters with plastic wrap, and packaed by wooden case.
