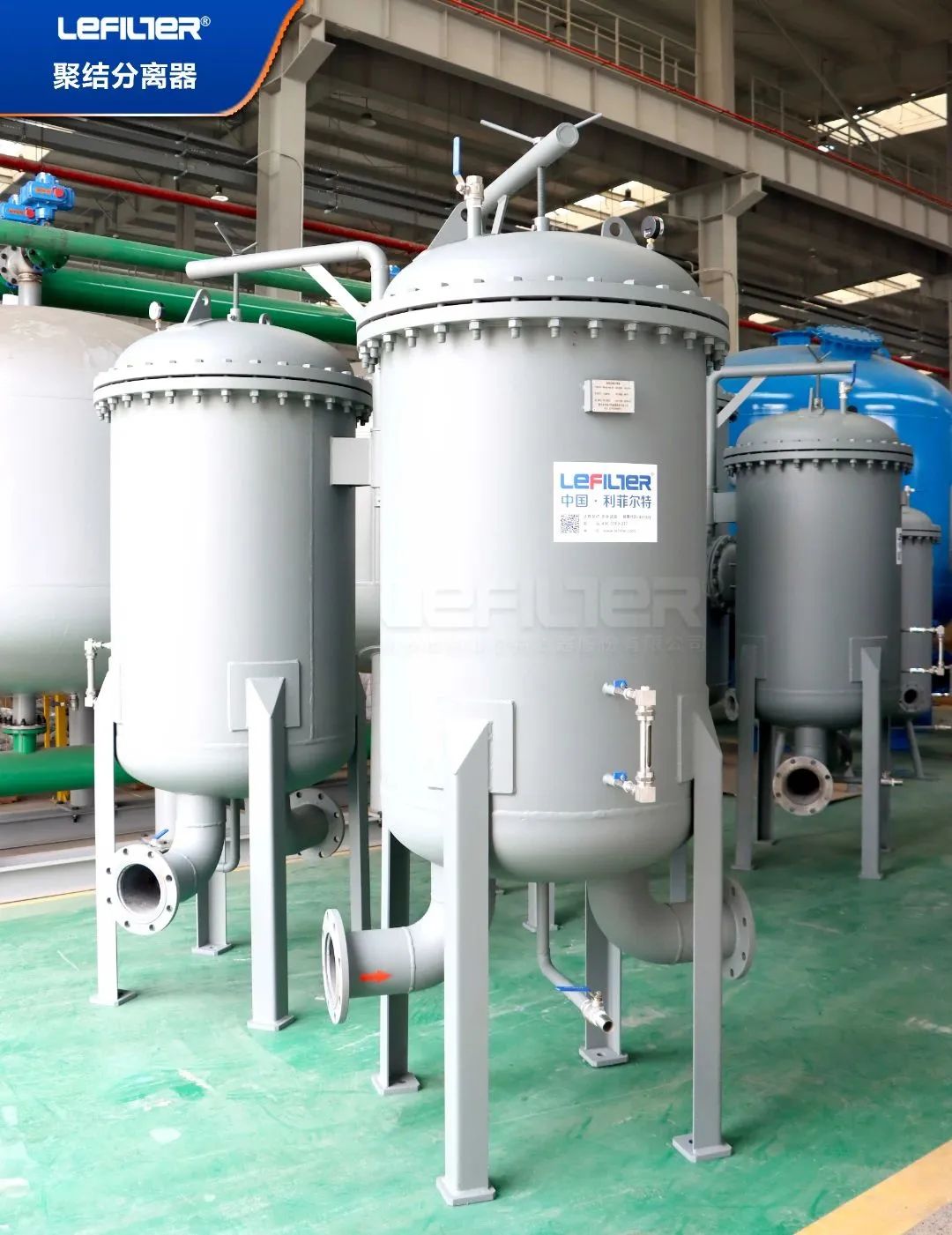

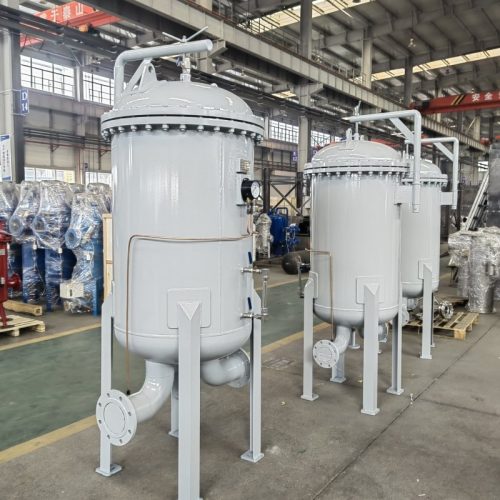

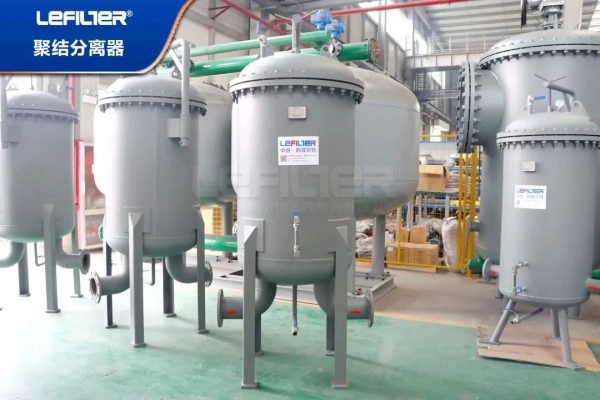

Coalescence Separator Filter

As a professional manufacturer of cartridges, we are proud of our Coalescence Separator Filter product line. This product uses the most advanced technology and equipment to efficiently separate impurities and contaminants from fluids to achieve the filtration you want. Our product line uses state-of-the-art processes and materials to ensure that each cartridge offers outstanding performance and durability, and is tested through a rigorous quality control process.

Introduction

Coalescence separator filter, also known as oil-water separator filter, jet fuel separatorfilter.

Integrating filtration and dehydration, it can not only filter out various tiny particles in the medium, but also effectively filter out water, fibers and suspended solids in the medium. It is a very ideal oil purification equipment. At the same time, it is widely applicable to all kinds of fine chemical raw materials that need to be purified.

In the process of petroleum refining or mechanical processing, due to the water in the raw material itself (or the reason for the water entering the process), the medium is inevitably mixed with water. The existence of water will affect the process effect, process equipment and product quality. Cause adverse effects, therefore, the coalescer plays a vital role.

1

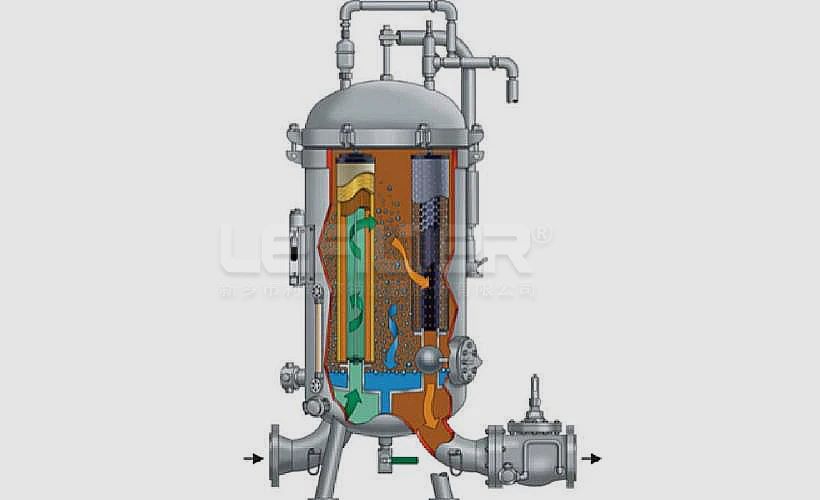

Product structure and working principle

Coalescing separator is mainly designed for liquid-liquid separation. It contains two filter elements, coalescing filter element and separation filter element. It is also equipped with drain valve, drain valve, differential pressure gauge, safety valve, heat tracing device and other accessories.

In the oil water removal system, after the oil flows into the coalescing separator, it first flows through the coalescing filter element to filter out solid impurities, and coalesces extremely small water droplets into larger water droplets. Most of the coalesced water droplets The water droplets can be separated from the oil by their own weight and settle into the sump.

Then the oil product flows through the separation filter element, because the separation filter element has good lipophilic and hydrophobic properties, so as to further separate the water, and finally, the clean and water-free oil product flows out of the coalescing separator.

Function

The coalescing separator mainly plays the role of oil-water separation, the water content of the incoming oil is 400-600ppm, and the water content after filtration is ≤100ppm.

Application

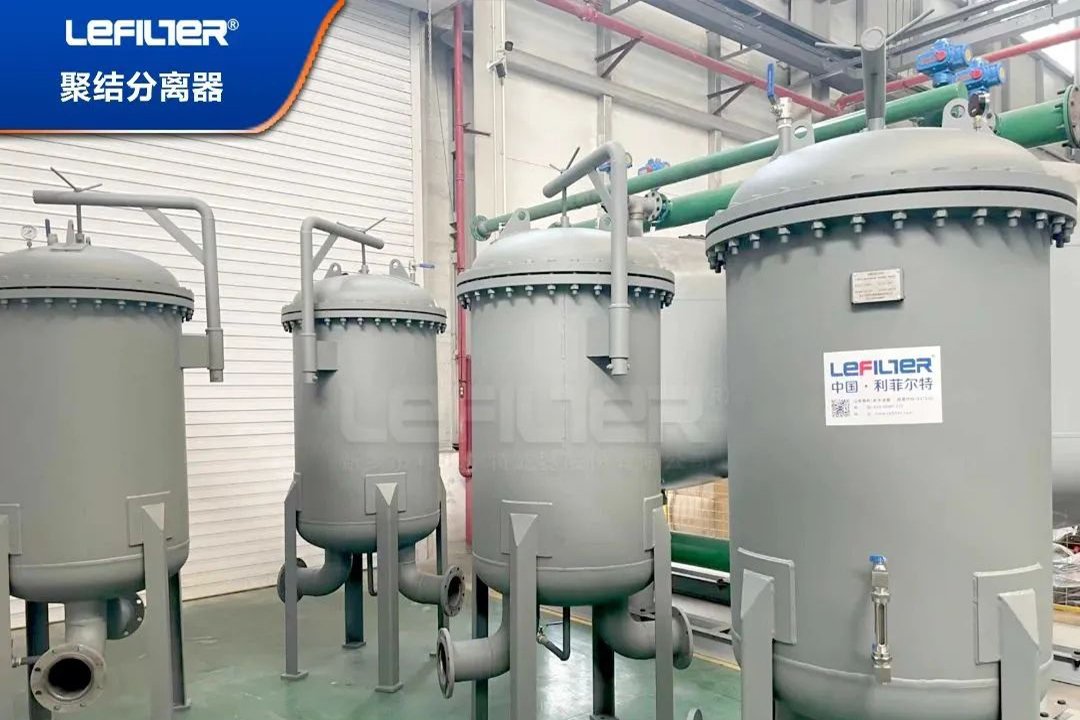

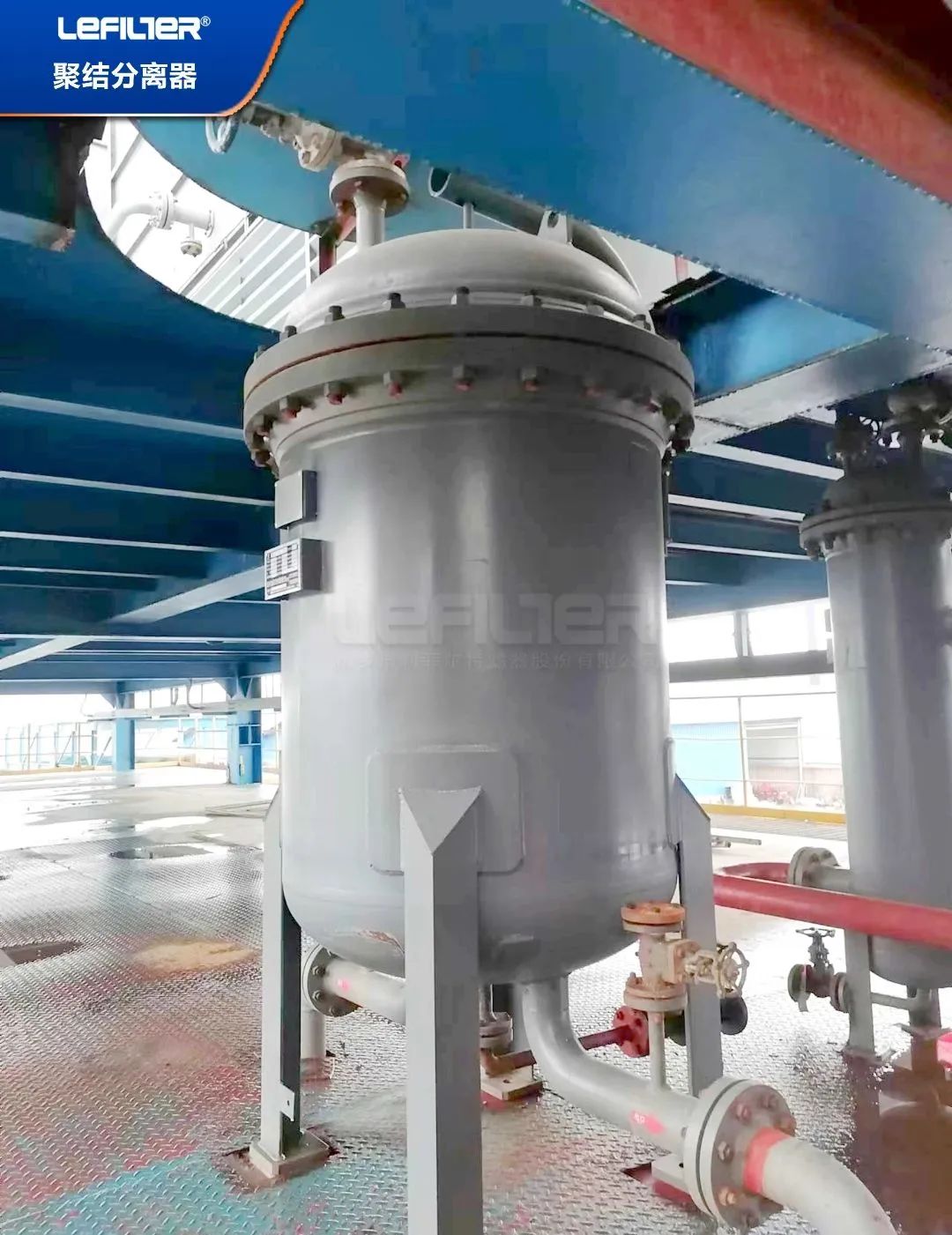

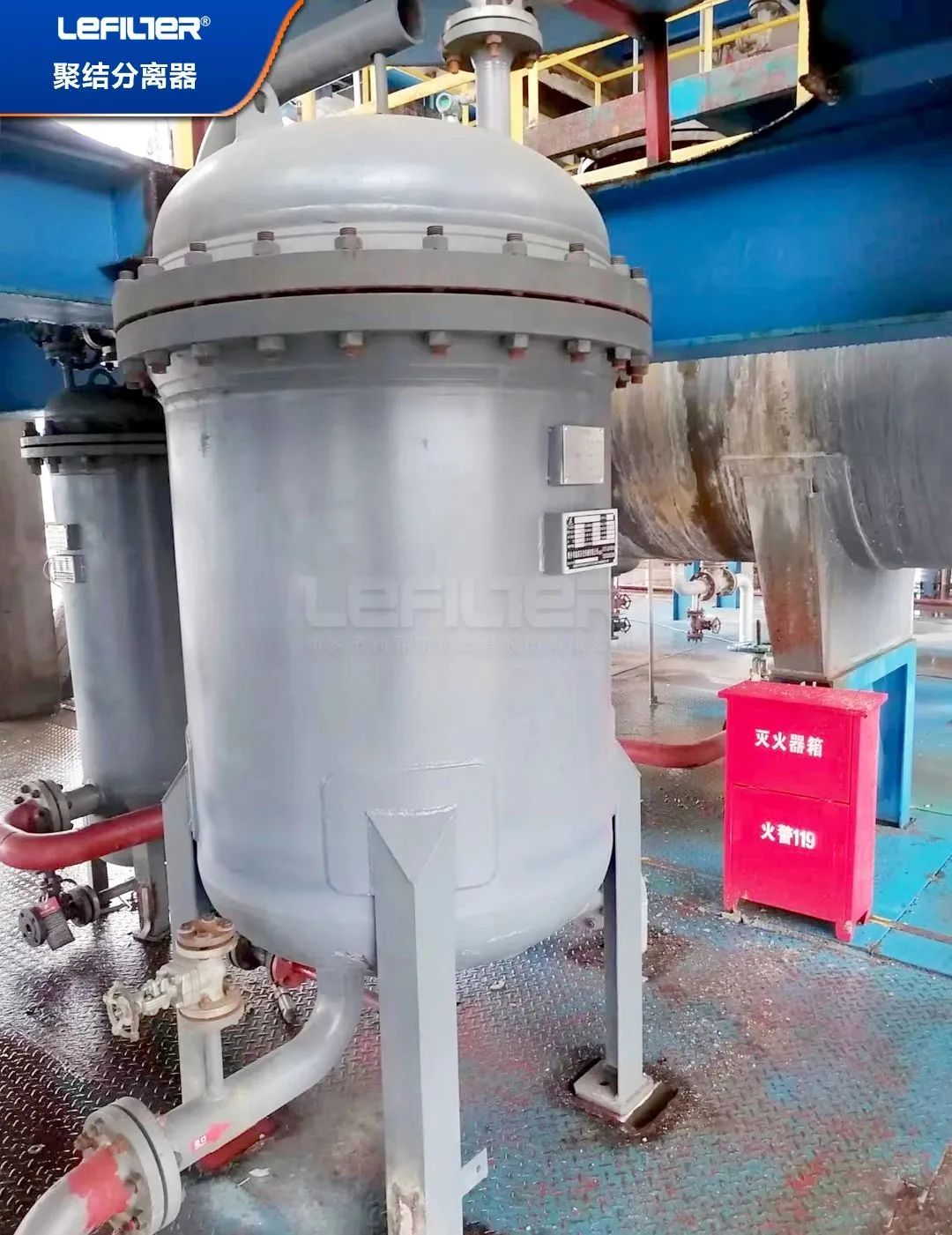

Coalescing separator is suitable for aviation fuel, gasoline, kerosene, diesel oil, liquefied petroleum gas, low-viscosity hydraulic lubricating oil, turbine oil, etc., airports, oil depots, city gas, mine gas, liquefied petroleum gas, etc

After-Sales Service

1 year warranty (charge for human damaged parts)

Lifetime maintenance and spare parts supply

Customized products designed according to your needs

Free training for your staff on equipment installation and operating procedures
