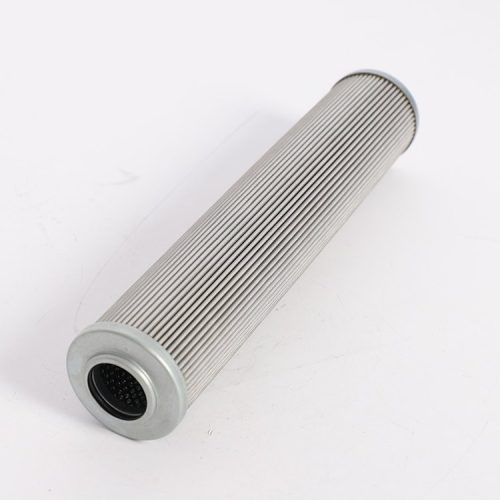

Alternative INTERNORMEN Filter Element

Our oil filter element has the advantages of easy installation, high reliability and simple maintenance, which can effectively filter out impurities and contaminants in the oil and protect the normal operation of machinery and equipment.

Introduction

The INTERNORMEN filter elements are divided into four types: coarse filter element, ordinary filter element, precision filter element filter and ultra-fine filter element according to different filtration accuracy requirements. They are widely used in hydraulic systems and lubrication systems to filter out metal particles caused by wear in oil. and rubber impurities to ensure the normal operation of the system.

Technical Parameters

Filter material: glass fiber, stainless steel metal mesh, filter paper

filtration accuracy:1-100μm

Working temperature: -30℃~+100℃

Inner framework: punching mesh

Sealing material: z-fluoro rubber ring, d-nitrile rubber ring

End cover: carbon steel galvanized (can be marked)

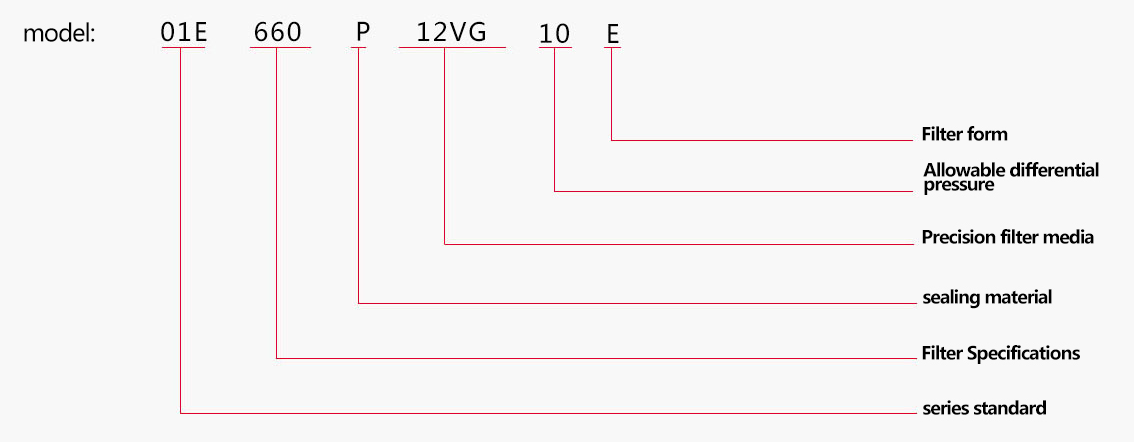

Model Description

Common Model List

101E30,3VG,HREP1401,E240,50G,HR.E,P
20LE.30,6VG.30EP150LE.240.25VG.10EP
301E30.25G30EP160LE.360.6VG.HR+E.P
40LE.603VG.HREP1701.E360.12VG.10.LP
50LE.60.12VG.30.E.P180LE.45O.6VG.HREP
60LE.120.25VG.10.E.P190LE.450.80G.10.E.P
701.E.90.3VG.HR.E.P20OLE,660.12VG.10EP
801.E.90.25G.HR.E.P2101.E.660.6VG.HR.E.P
901.E.150.3VG.10.E.P2201.E.900.3VG.HR.E.P
1001.E.150.25G.10.E.P2301.E.900.25VG.10.E.P
1101.E.170.6VG.HR.E.P2401E.1200.2SVG.16.S.P
1201.E.170.25G.10.E.P2501NL250.10VG.30EP
1301.E.240.6VG.HR.E.P2601NL.630.25VG.10.E.P

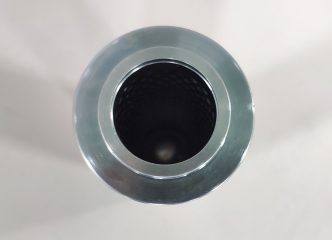

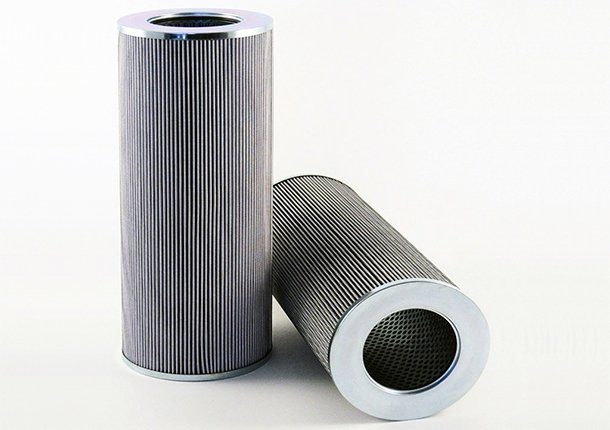

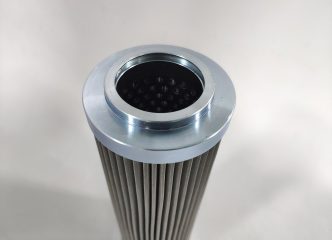

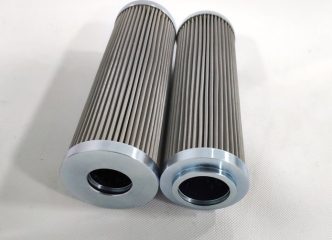

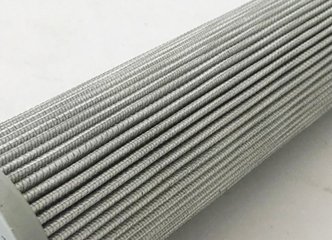

Product Details Show

alternative-internormen-filter-element-product-details-4
alternative-internormen-filter-element-product-details-2
alternative-internormen-filter-element-product-details-1
alternative-internormen-filter-element-product-details-5

Workshop Details Show

Application

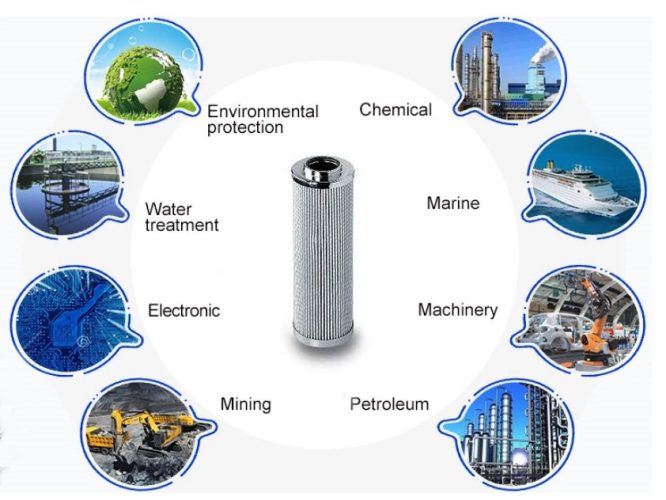

Thermal power and nuclear power,electronic industry,petrochemical industry and railway internal combustion engine filtration,etc

应用4

Package & Shipping

After-Sales Service

1 year warranty (charge for human damaged parts)

Lifetime maintenance and spare parts supply

Customized products designed according to your needs

Free training for your staff on equipment installation and operating procedures
